HydroCarbon Residue Fouled welded plater Heat exchanger CIP or OLC Cleaning |
Non-decomposition cleaning technology for Compabloc heat exchangers in oil refineries/petrochemical plants |
Deposits are constantly accumulating on the heat transfer surfaces of heat exchangers, and when excessive, they increase the pressure drop (ΔP), create turbulence, and impede the flow of fluid. Soft deposits can be removed with organic solvents, but hard scales formed from a combination of hydrodarbon and mineral components cause persistent and rapidly increasing problems. Inorganic solids further reduce the heat transfer efficiency, and if the process fluid contains corrosive substances, they accelerate the damage to the material. The cleaning method must prevent physical damage, and it is important to select a suitable cleaning agent that does not damage the material. To solve this problem, it is most desirable to maintain the performance of the heat exchanger by using a CIP (Cleaning In Place) method or OLC (Online Cleaning) that allows cleaning without disassembling or removing the device using an eco-friendly detergent. Cham Clean provides precision chemicals that effectively remove solid substances attached to the Heat Exchanger through CIP or OLC. |
Application of high-performance detergent to clogged plate packs Application of technology to remove oil and inorganic deposits
|
Online Cleaning is a feasible technology for physical cleaning (Blushing, Hydro jetting) Application of exclusion technology
|
Welded Plate Heat Exchanger Cleaning Technology
" Dissolution of Crude deposits on Compabloc heat exchanger "

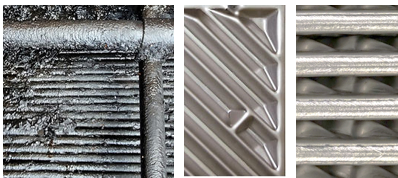

The characteristics of the welded plate heat exchanger are that the plate thickness is thin (1.0t) and the gap is narrow (5~10mm) to maximize the heat transfer surface, so it is difficult to push out sticky scale inside the heat transfer plate with ultra-high pressure cleaning (hydro-jetting), and hard scale blocks the groove and cannot be cleaned.

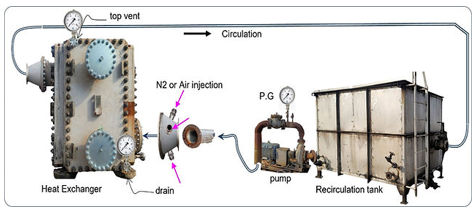

Cham Clean provides an Onlin Cleaning Solution that cleans without disassembling.

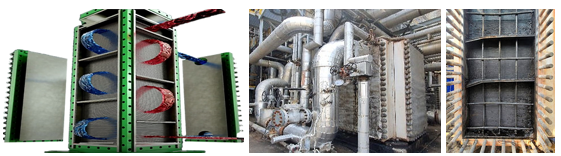

Welded plate Pack & Assembly
